Adaptive transcoding

Adaptive transcoding is a Fregata-exclusive feature — it does not exist in upstream Frigate. It gives both recordings and live camera streams a ladder of quality rungs, transcoded on the Media Engine, so a stream that is too heavy for the connection has something lighter to fall back to.

The two tiers choose a rung differently, and the difference is deliberate:

• Recordings are served as an HTTP Live Streaming (HLS) adaptive bitrate ladder, and the player selects automatically — it takes the highest-quality rung the viewer’s connection can sustain without buffering, dropping and recovering on its own as the connection changes.
• Live is not HLS and does not switch on its own. Each rung is offered in the stream dropdown and the viewer picks one. See Live transcoding below for why.

The primary use case is remote and mobile viewing. A 4K or even a typical 1080p high-bitrate recording stream is completely unwatchable on a weak LTE or 5G signal — the stream simply won’t load at all, or buffers every few seconds. Watching a recording, Fregata automatically drops to a lower quality, which loads cleanly even on one bar of cellular, and steps back up to full quality once the connection improves. Watching live, the same rungs are there to switch to by hand.

All transcoding runs entirely on the Apple Silicon dedicated Media Engine via VideoToolbox — zero CPU. Everything is off by default and must be enabled in Settings or in your config file.

Adaptive Transcoding is conservative by design

By default, adaptive transcoding will start new streams at the lowest configured quality and move up from there, if bandwidth allows. You can override this behavior with starting_rung_height.

Adaptive transcoding is built for fast loading and smooth transitions between qualities while on weak mobile, or other low bandwidth, connections. Our goal is fast starts and minimal stuttering or buffering. This means you may notice a lower quality than you’d expect as we make extra sure you have plenty of bandwidth before raising the quality.

Fregata Mobile uses the ladder

Fregata Mobile, the free iPhone, iPad and Apple Watch app (public beta), uses these rungs when its server is Fregata. Away from home it opens live view on a lighter stream, and it plays recordings that step down on a slow cellular connection. Both only work once the ladder is on for the camera: Enable adaptive transcoding (adaptive_transcoding) gives recordings their ladder, and Enable live-view transcoding (live: true) adds the live rungs. Without them, or with Frigate, the app still works, but the lighter rungs are not offered.

Quick Start

Turn on adaptive transcoding in Settings, or add the following to config.yml, and restart Fregata.

Settings UI

1. In the web UI, go to Settings → Fregata (macOS) → Global configuration → Adaptive transcoding.
2. Turn on Enable adaptive transcoding (recordings).
3. Turn on Enable live-view transcoding if you also want live-view rungs.
4. Set Starting rung height to 720 to start at 720p instead of the lowest rung.
5. Leave Rungs and LAN networks at their defaults, or edit them (see LAN bypass).
6. Click Save, then Restart when the page asks.

YAML

adaptive_transcoding:
  enabled: true
  live: true                   # also enable live stream transcoding
  starting_rung_height: 720    # start at 720p, not the lowest rung
  # rungs and lan_networks keep their defaults; see the full example below

How it works for recorded clips

When adaptive transcoding is enabled:

1. ffprobe inspects the camera’s stream once at startup and caches the result — dimensions, codec, bitrate.
2. The ABR engine builds an HLS segment cache on the RAM disk for each active rung.
3. The top rung is always served as original quality if bandwidth allows — free, no encode cycles at all.
4. Lower rungs are transcoded on the Media Engine: VideoToolbox hardware decode and encode.
5. By default streams of recordings always start on the lowest rung. This can be overridden by starting_rung_height.
6. The hls.js player in the web UI reads the HLS master playlist and switches rungs in real time as it measures throughput.

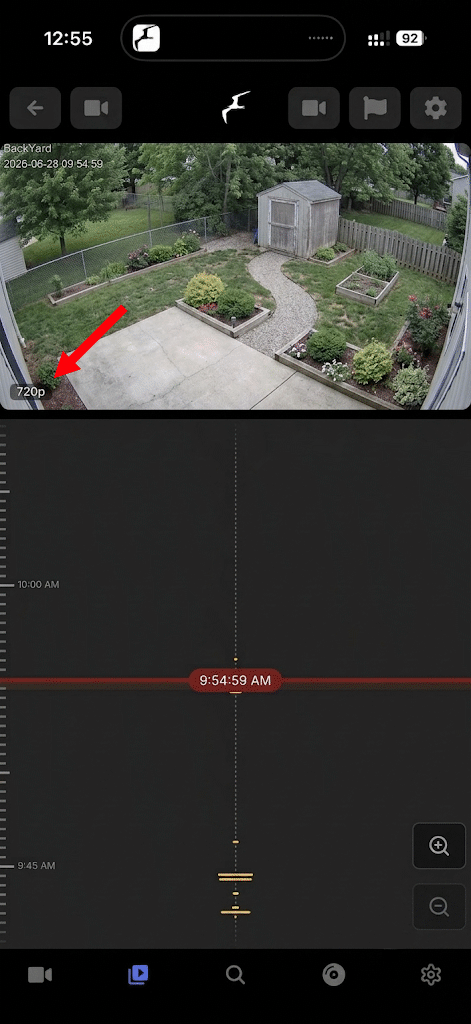

7. When adaptive transcoding is active, you will see the currently playing quality as a small bubble in the lower left corner of the video stream. If you do not see this, original quality is being played.

LAN bypass (recorded clips only)

Clients whose IP falls within lan_networks (default: all private, loopback, and link-local ranges) receive the original source stream, bypassing the ABR ladder entirely. On a local network you have more than enough bandwidth; transcoding would not add any benefit.

Set lan_networks: [] (an empty LAN networks list in Settings) to disable the bypass and force the ABR ladder for all clients.

VPN and Tailscale users

If you connect remotely through WireGuard or another VPN that assigns tunnel addresses in the 10.0.0.0/8, 172.16.0.0/12, or 192.168.0.0/16 ranges, those addresses will match the default lan_networks list and receive the passthrough stream — defeating adaptive transcoding on that connection.

Remove the conflicting subnet from lan_networks to fix it:

Settings UI

1. Go to Settings → Fregata (macOS) → Global configuration → Adaptive transcoding.
2. In the LAN networks list, remove the entry that overlaps your VPN’s addresses (here 10.0.0.0/8) and keep the one that matches your real LAN.
3. Click Save.

YAML

adaptive_transcoding:
  lan_networks:
    - "127.0.0.0/8"
    - "192.168.0.0/16"     # keep your actual LAN subnet
    # "10.0.0.0/8" removed — WireGuard tunnel is using 10.x.x.x

Tailscale uses the 100.64.0.0/10 CGNAT range by default, which is outside the default lan_networks list — Tailscale users need no changes.

Live transcoding

Setting live: true under adaptive_transcoding also enables adaptive rungs for the live view.

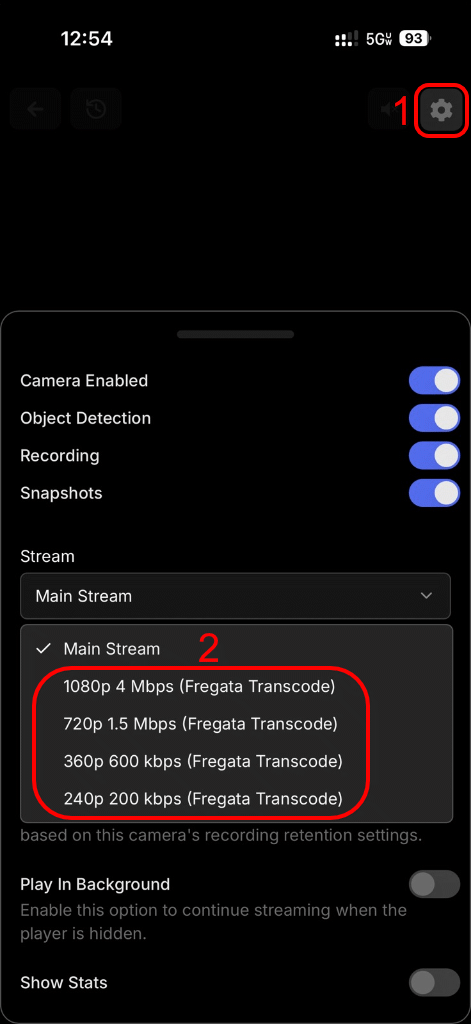

The stream dropdown in the live view lists each configured rung as a selectable option (e.g. “720p 1500 kbps (Fregata Transcode)”). For live viewing the stream does NOT currently switch qualities automatically, the selection is manual. This is due to the fact that live streams are, well, live. There is no buffer to determine if we are draining the buffer faster than we can replenish it to signal that we need to drop the quality.

Live transcoding is a separate opt-in from recordings ABR (live: true): live rungs are created as go2rtc streams at startup. They consume no resources until played. Requires the camera to be set up to be restreamed via go2rtc (default).

Enabling adaptive transcoding

Minimal global AND per-camera config:

Settings UI

For every camera

1. Go to Settings → Fregata (macOS) → Global configuration → Adaptive transcoding.
2. Turn on Enable adaptive transcoding, and Enable live-view transcoding if you want live-view rungs.
3. Click Save, then Restart when the page asks.

For one camera (opt in, or opt out of a global setting)

1. Go to Settings → Fregata (macOS) → Camera configuration → Adaptive transcoding and pick the camera in the selector at the top.
2. Set Enable adaptive transcoding (and Enable live-view transcoding) for that camera.
3. Click Save, then Restart when the page asks.

YAML

# All cameras use transcoding for recordings by default
adaptive_transcoding:
  enabled: true
  live: true           # live view rungs (optional, separate opt-in)

cameras:
  indoor_cam:
    adaptive_transcoding:
      enabled: false       # this camera opts out

Or set per-camera:

cameras:
  front_yard:
    adaptive_transcoding:
      enabled: true        # recordings ABR
      live: true           # live view rungs (optional, separate opt-in)

Restart Fregata after changing config.yml.

Configuration reference

Per-camera fields

These fields can be set at the top level (adaptive_transcoding:) to apply a default to every camera, or per-camera (cameras.<name>.adaptive_transcoding:) to override.

Field	Settings label	Type	Default	Description
enabled	Enable adaptive transcoding	bool	false	Enable recordings ABR for this camera.
live	Enable live-view transcoding	bool	false	Enable live-view rungs. Does not follow enabled — must be set explicitly.
starting_rung_height	Starting rung height	int or null	null	Start playback on the highest configured rung whose height is ≤ this value. null starts at the lowest rung — safest for variable connections.
rungs	Rungs	list	See below	The ABR ladder, highest quality first. Each entry: height (px), bitrate (kbps). The engine will never upscale, if you have a 1080p rung listed by have a single camera that maxes out at 720p, the 1080p rung will be disabled for that camera.

Default rung ladder:

Height	Bitrate
1080p	4000 kbps
720p	1500 kbps
360p	600 kbps

Original quality is always served if bandwidth allows with no transcoding at all.

Global-only resource fields

These fields are honored only at the top-level adaptive_transcoding: block, not per-camera.

Field	Settings label	Type	Default	Description
lan_networks	LAN networks	list of CIDRs	Private/loopback/link-local	Clients in these ranges receive the original source stream. See LAN bypass above.

Full annotated example

Settings UI

Every field in the example is on one of two pages. The top-level adaptive_transcoding: block is Settings → Fregata (macOS) → Global configuration → Adaptive transcoding. Each camera’s adaptive_transcoding: block is Settings → Fregata (macOS) → Camera configuration → Adaptive transcoding, with the camera chosen in the selector at the top. LAN networks exists only on the global page.

YAML

adaptive_transcoding:
  enabled: true
  live: true    # enable live stream transcoding
  lan_networks:    # adaptive transcoding (recorded clips) will be disabled all connections from IPs in any of these local LAN ranges
    - "127.0.0.0/8"
    - "10.0.0.0/8"
    - "172.16.0.0/12"
    - "192.168.0.0/16"
  rungs:
    - height: 1080
      bitrate: 4000
    - height: 720
      bitrate: 1500
    - height: 360
      bitrate: 600
  starting_rung_height: 720    # start at 720p, not the lowest rung

cameras:
  front_yard:
    adaptive_transcoding:
      enabled: true
      live: true
      starting_rung_height: 720    # start at 720p, not the lowest rung
  indoor_cam:
    adaptive_transcoding:
      enabled: true                # recording transcode only; live stays off

Hardware requirements

Adaptive transcoding runs exclusively on the Apple Silicon Media Engine via VideoToolbox. It is macOS-only and is not available in upstream Frigate-on-Docker. Any M-series chip (M1 or later) supports it; no special hardware beyond Fregata’s system requirements is needed.

Debugging

Set FREGATA_ABR_DEBUG=1 (Tray → Settings → Environment Variables, then restart) to enable verbose ABR diagnostics in the Frigate log. The player logs rung switches, bandwidth estimates, and segment timing.

For recordings, when adaptive transcoding is active, you will see the current quality in a small bubble in the bottom left corner of the video stream (see screenshots above). If you do not see this bubble the original quality video is being played.

Live stream transcode streams must be selected manually from the stream dropdown for that camera but they also show a bubble in the bottom left of the UI when a non-original quality stream is being played.

To further verify adaptive transcoding is active, open the recordings view for an enabled camera and watch the browser DevTools Network tab. You should see requests to:

/api/<camera>/start/<s>/end/<e>/adaptive/master.m3u8
/api/<camera>/start/<s>/end/<e>/adaptive/rung/<height>.m3u8
/api/<camera>/start/<s>/end/<e>/adaptive/rung/<height>/<seq>.ts

If you see /vod/ requests instead, adaptive transcoding is not active for that camera — check that enabled: true is set and that Fregata was restarted after the config change.
